| description |
OEM details |
Bulb data |
bulb notes |
additional |
bulb base | 1968 Lucas number |
| headlight, sealbeam - 2ea |
Carello units, Fiat 850, sealed beam HI/LO |
PAR-56 |
3 prong | |||
| tailight/brakelight - 2ea turn signal - 2ea |
Carello units, Fiat 850 - upper portion marked 5W/20W - lower portion marked 20W |
S-8 S-8 |
2215/SIEL/12/5-21 PHILIPS 12V 21W FIAT 8E |
BAY15d | 380 |
|
| parking light/turn signal - 2ea |
Carello -base marked - 11.380.580 , 20/5w clear glass lense marked - 11.380.706 , IGM0164 LAX rubber shroud base marked - 11.380.505 white lense rubber marked - |
S-8 |
20/5W |
BAY15d | 380 |
|
| marker light, front side - 2ea |
Carello 14.101.717, SAE P167 Fiat #4174367 |
T-3-1/4 |
194 3.78watt |
 |
W2.1x9.5d | 504 |
| driving light, fog lights - 2ea | Carello JOD PFr - PF.66 clear or yellow, PA.66 spot |
H1 |
iodine - 12v IRIS SP15 halogen - H1 55watt #448 |
P14.5s | ||
| backup - 1ea |
Carello, lens 18.500.716, body 18.500.748 |
S-8 |
OSRAM 7532 20W | BA15s | 335 |
|
| trunk interior - 1ea |
chrome bezel, glass lens |
T-10mm |
37X10C12V5W |
 |
SV | 254 |
| engine compartmant - 2ea |
metal fixture, naked bulb, marked Giuntini |
T-10mm |
OSRAM 12V 5W FIAT 7E |
|
SV | 254 |
| interior kick panel - 2ea |
plastic marked SIRIO 5R Fiat 850 spider courtesy lights #4132097 |
T-10mm |
OSRAM 12V 5W |
|
SV | 254 |
| speedo back light - 2ea |
Jaeger |
BA9s | 233 |
|||
| tach back light - 2ea |
Jaeger |
BA9s | 233 |
|||
| gages back lights - 6ea |
Jaeger |
OSRAM 3796 12V 3W |
BA9s | 233 |
||
| gage warning - 3ea |
Jaeger |
OSRAM 3796 12V 3W | BA9s | 233 |
||
| lower indicator/warning light - set of 5 |
SEIM, france, ROMANS |
ATTI-12V-5W | BA9s | 233 |
||
| turn indicator dashboard |
SEIM, france, ROMANS |
ATTI-12V-5W |
BA9s | 233 |
||
| license plate -2ea |
Hella units, metal marked 5W |
T-10mm |
OSRAM 12V 5W | |
SV | 254 |

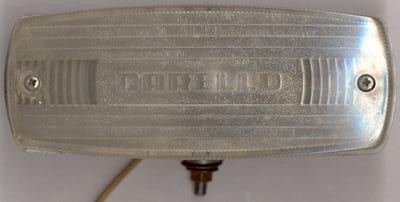

P400 back up

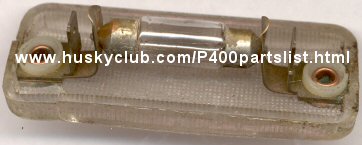

P400 interior kickpanel
