Description
|
OEM details
|
Photo 1
|
|

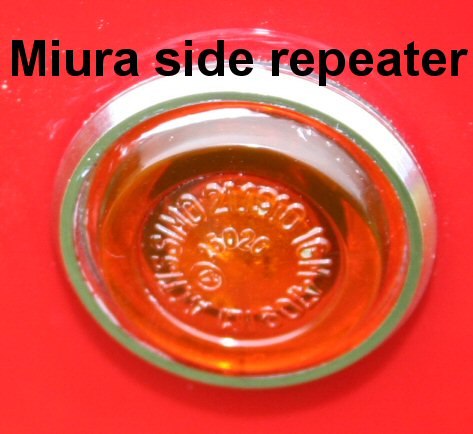

1) side turn signal
repeaters
|
Altissimo 21.19.10
P400 and early P400S
|
|
|
1.1) side turn signal
repeaters
| Carello 14.101.717
P400 and early P400S
P400 would most likely be black paint on SS.
|
|
|
1.2) side turn signal
repeaters
|

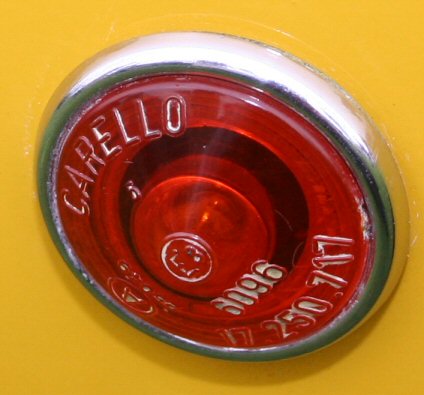

Carello 17.250.717
late P400S and P400SV Euro
|
|
|
1.3) side marker -
rectangular recessed USA after 1970
|
Carello 14.xxx.xxx
Fiat 124
need info please |
|
|

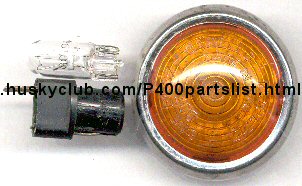

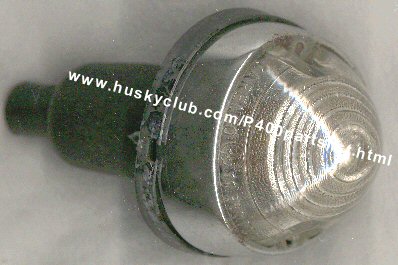

2) turn sig park light
|
Carello
-metal base marked - 11.380.580 , 20/5w
clear glass lense marked - Carello 11.380.706 , IGM0164 LAX
rubber shroud base marked - 11.380.505
white lense rubber marked - unreadable
P400 would most likely be black paint on chrome .
|
|
|
2.1) turn sig/park SV
|
Carello
Fiat 124
|
|
|
3) headlights
|
Carello,
67-68 Fiat 850 Spider glass covered buckets modified by Lamborghini to
rotate up. Sheet steel pieces fabbed and welded to buckets.
P400 would be black paint on SS ring.
|
|
|
4) fog lights
driving lights
|
Marchal
Carello
Hella
very likely P400 would be black paint on chrome exterior pieces.
need info please
|
|
|

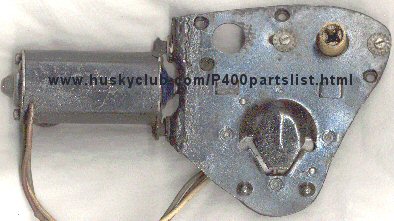

5) headlite motor assembly
|
Ducellier |
 |
 |
5.5) headlite motor overload protection,
not numbered on elec dia
|
marked 12v, 15a, type 1110
|
|
|
6) radiator fan motors
|
square motor Lucas, type 3GM, 78378 3 68 12V GC
exact
same XKE 61-71, see heater also
|
|
|
6.1) rad fan motor round can
|
Lucas
need info please
|
|
|
7) switch thermo, fan
|
cast into black plastic - Otter,
Patented, Buxton England, V60
stamped into face metal - Jan 70, B, M70
appears to be same as early XKE Otter fan switch
|
|
|
8) switch, hi temp
warning
|
cast into plastic -
Jaeger Prelac, made in France, Bte SGD6
stamped into hex sides - A4, 96
threads are 16 x 1.5
|
|
|

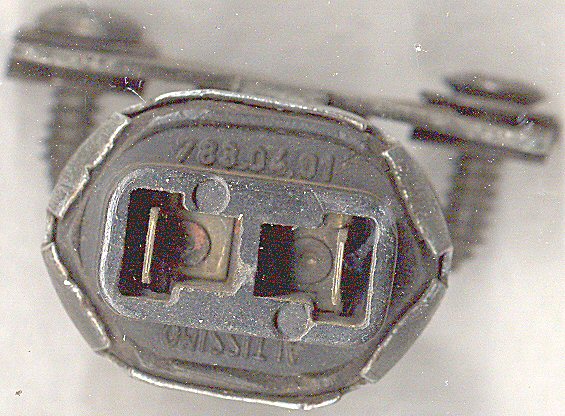

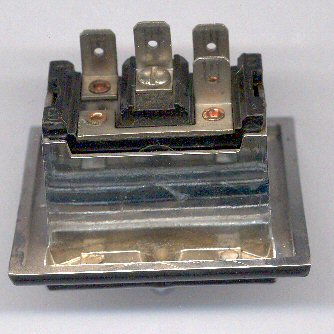

9) headlite switch
|
Altissimo #783.04.01
|
|
|
10) windshield washer
|
Lucas - Screen Jet - SJ5
P400 will have exposed chrome washer nozzles painted black
|
|
|

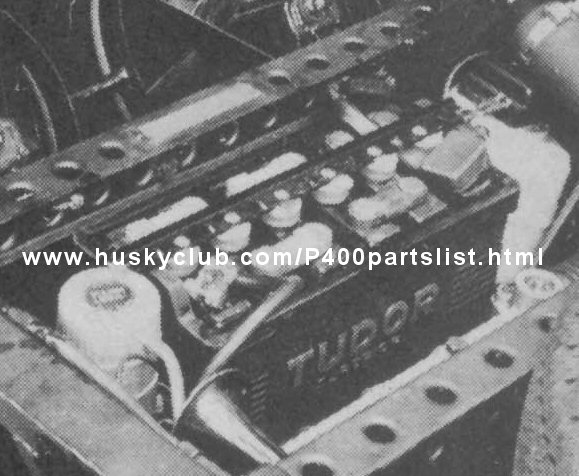

11) battery
|
TUDOR
6SP4, 65 ah, 12v, neg ground
URANIO
6UV5B, 72 Ah, 12v, neg ground
SANTOS, Magneti Marelli ?, FIAMM ?
Welded bracket in car, 317mm x 177mm
Possible era dimension of battery - 315 x 175 x 190
|
|
|

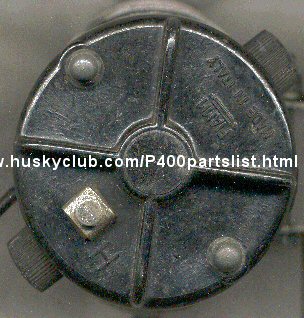

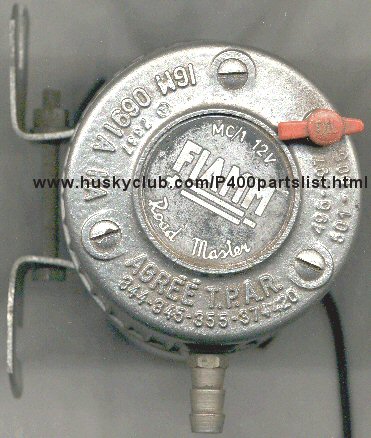

12) horn
|
Fiamm, Road Master
horn trumpets - candy red
tubing - garish red opaque
y piece - red plastic
metal parts - hammertone silver
later model (#300+) Miura have later style compressor with black
head section, also different compressor decal.
|
|
|

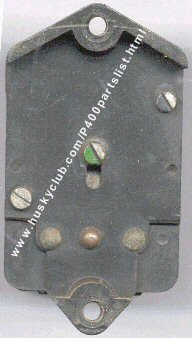

13) fog light relay
|
C.E.A.M.
|
|
  |
14) headlight relay
|
C.E.A.M.
|
|
|
15) fuel pump, electric
|
Bendix "Elmira" #480532
Facet #480532
|
|
|
16) radio
|
Blaupunkt and others per
customer request
need info on OEM installations |
|
|

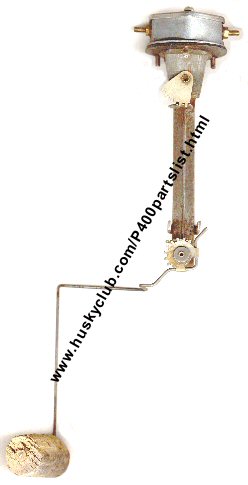

| 17) fuel
level float sender |
Jaeger ?, top marked 12V co
v1 166
|
|
|
18) horn relay
|
Fiamm, 12v, black plastic, early Miura will have screw terminals with added tabs, late Miura will have riveted tabs
|
|
|

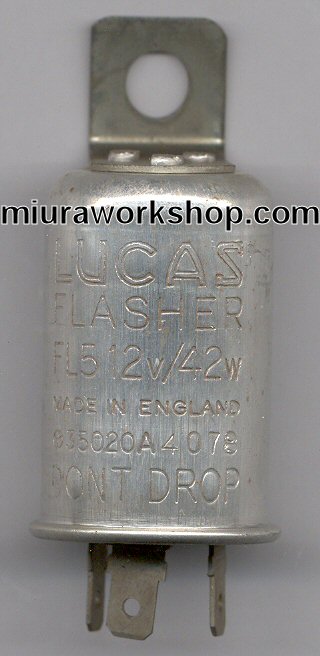

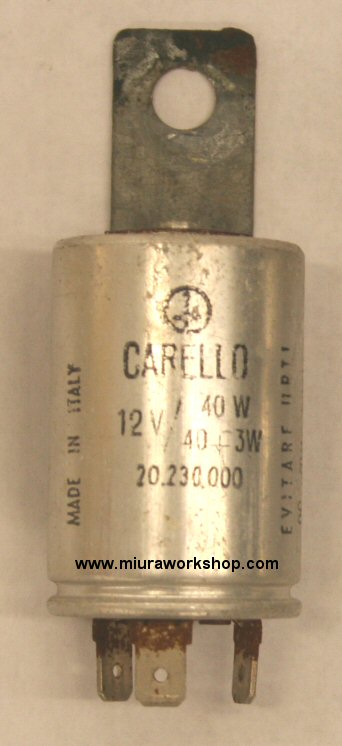

19) signal flasher unit
|
Lucas - 12v, 42 watt, 35020A 40 78 FL5
update 2008 - 40 78 would indicate 40 week of 1978, so OEM may or may
not be Lucas. Period correct Lucas, Altissimo or Carello could well be
OEM . Most Lucas pieces are date stamped, check this!
Carello 20.230.00
Altissimo 12V-
|
|
|
20) voltage regulator
|
Bosch RS AD1/14v
0 190 601 006 AD 1/14Y
band of tape to hold cover - usually translucent ivory
|
|
|
21) heater fan motor
|
Lucas, type 3GM, 78378 12 67 12V GC, see rad
fan
|
|
|
22) windshield wiper motor and
gearbox
|
early Miura square motor Lucas
marked
#75423D - type 6W
later Miura square motor Lucas marked #75593D - type 6WA
later Miura round motor Lucas marked #75646x - type 14W
also mid 73+ round motor Lucas marked #75664x - type 14W
|
|
|
22.2) windshield wiper
wheel boxes
|
square motor Lucas wheelboxes
marked - #72775A
|
|
|
23) air conditioner
|
need info please
|
|
|

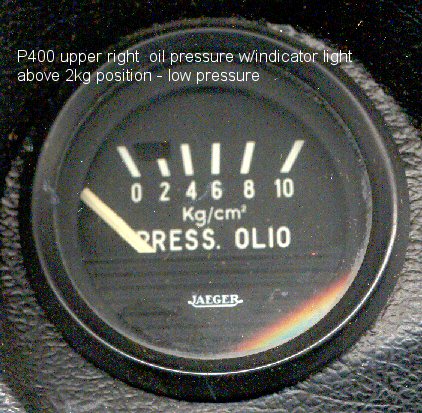

24) oil press gauge w/warning
light
|
Jaeger - 12v K7
face marked - 0-10 Kg/cm², PRESS. OLIO, MADE IN
ITALY
lo oil press warning light
|
|
|

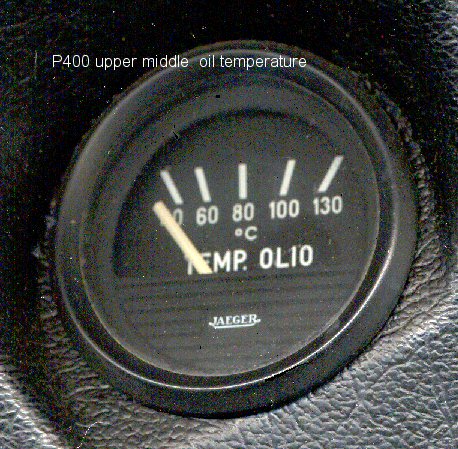

25) oil temperature gauge
|
Jaeger - marked 12v, C8
face marked - 40-130, °C, TEMP. OLIO, MADE IN ITALY
|
|
|

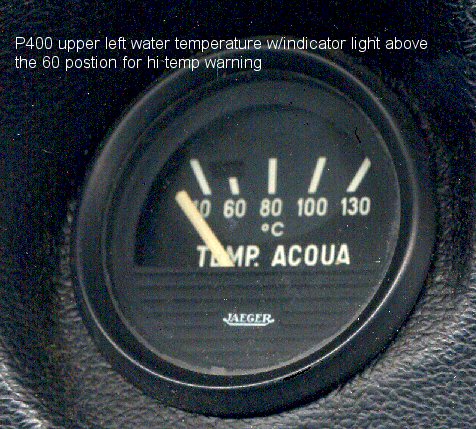

26) water temperature gauge
w/warning lite
|
Jaeger - 12v J7
face marked - 40-130, °C, TEMP. ACQUA, MADE IN ITALY
hi temp warning light
|
|
|
27) tachometer
|
Jaeger 0-100, no Lambo logo
|
|
|
28) turn signal indicator
|
 SEIM,
FRANCE, ROMANS
green insert with double end arrow
bulb marked - ATTI -12v-5w
|
|
 |
29) speedometer
|
Jaeger 40-320, no Lambo logo
|
|
|
30) turn signal switch, hi/lo,
horn, flash
|
Lucas type 119SA, 45 70, #35978D (installed in late 68 P400)
Lucas, type 119SA, 5 67, #34827J (reported not correct)
see discussion/notes on steering column page
|
|
|
31) right and left interior
lights
|
marked - SIRIO 5R, mounted
in kick panels
Fiat 850 Spider , under dash courtesy lights - #4132097
|
|
|
31.1)right and left int lights
overhead console
|
Fiat 124 Spider console courtesy lights
need info please
|
|
|
31.5) interior light door
jam switches, left/right
|

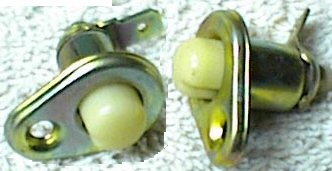

Fiat 850 Spider, door jam switch
#4102793 (#4258476 ?)
also use Fiat rubber shroud/boot #4023838
|
|
|

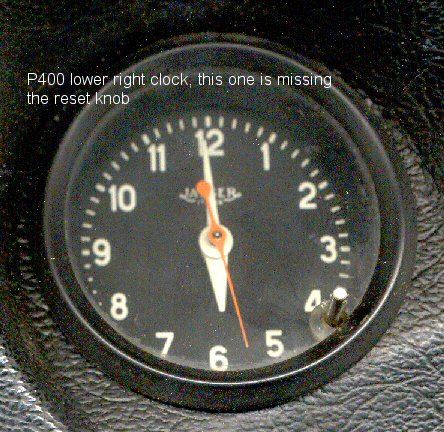

32) clock
|
Jaeger ITALIA
|
|
|
33) ampere gauge
|

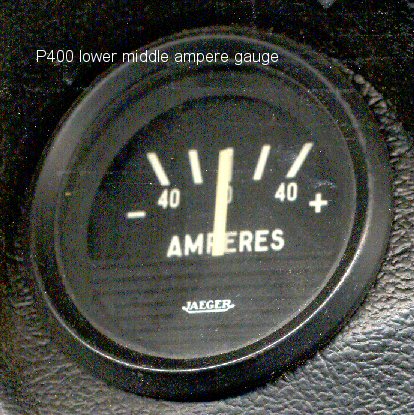

Jaeger
face marked - -40 0 +40, AMPERES, MADE IN FRANCE
|
|
|

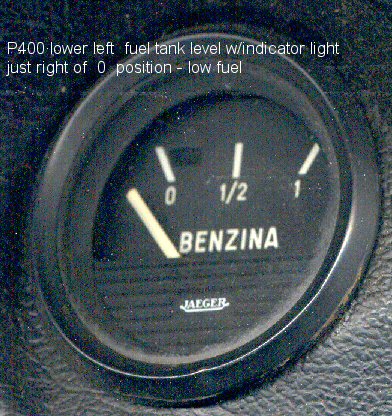

34) fuel gauge
|
Jaeger - 12v B8
face marked - 0-1, BENZINA, MADE IN ITALY
lo fuel warning light
|
|
|

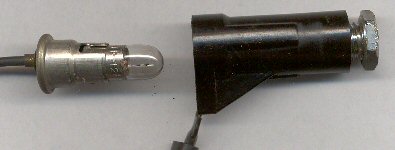

35) fog lamp "on" light
|

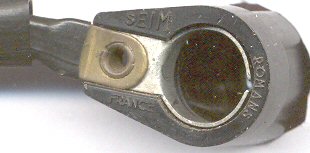

SEIM,
purple |
 |
|
36) alternator fail light
|
SEIM,
red |
 |
|
37) cooling fan "on" light
|
SEIM,
white |
|
|
38) hi beam indicator light
|
SEIM,
orange |
 |
|
39) parking lights "on" light
|
SEIM,
green |
 |
|
40) right and left power window
motors
|
need info please
|
|
|
41) toggle switch, rad cool
|
Lucas type 57SA, 35730A 3 68 off/on
|
|
|
41.1) rocker switch, rad fan
|
need info please |
|
|
42) toggle switch, fog light
|
Lucas type 57SA, 35730A 5 68 off/on
|
|
|
43) toggle switch, park light
|
Lucas type 57SA, 35730A 3 68 off/on
|
|
|
| 44) toggle switch, interior |
Lucas type 57SA, 35730A 3 68 off/on
|
|
|
| 45) toggle switch, panel |
Lucas type 57SA, 31969E 9 67 off/dim/brite, 3 positions, external resistor
|
|
|
| 46) toggle switch, heater |
Lucas type 57SA, 35730A 3 68 off/on
|
|
|
47) engine compartment light
switch
|
CEAM clip on switch early Miura
(#3 thru about #100)
Lucas type 57SA, 35730A 5 68 off/on later Miura (#101thru #750)
|
 |
|

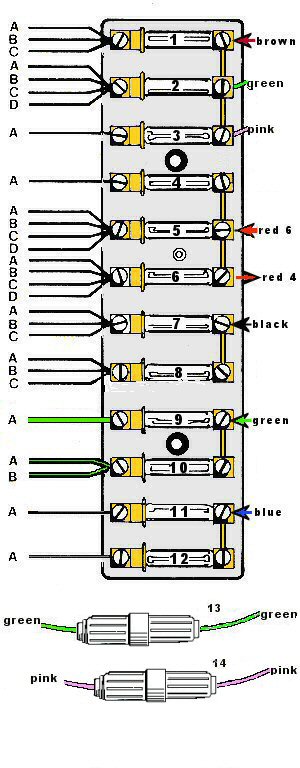

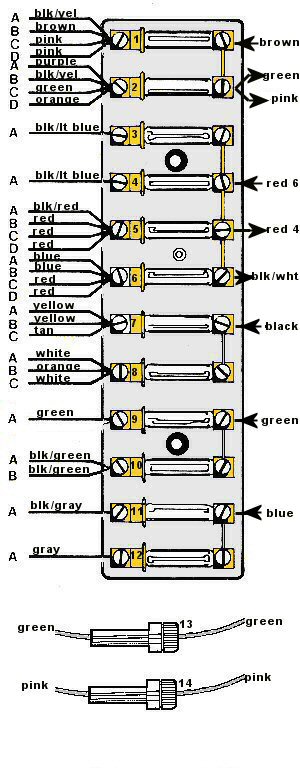

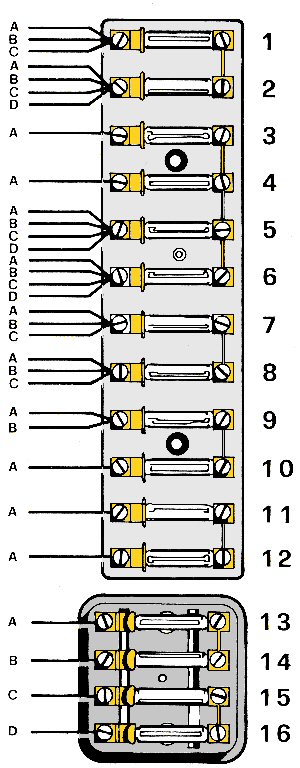

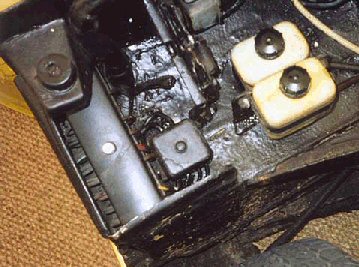

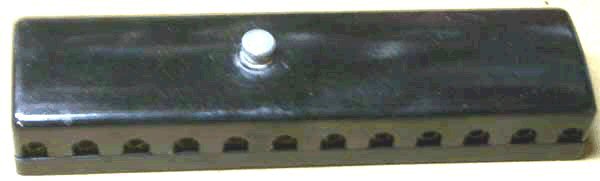

48) fuse box , Sicherungskasten
|
12
fuse box , bakelite, no markings other than 1 thru 12 on fuse
locations, screw terminal connections, appears German, maybe Bosch,
used in 66-68 911/912 Porsche. 2 holes in bakelite base match Miura nut
plate mounts. (Porsche linking or bussing not same, but easily modified.)
possible source - http://shop.store.yahoo.com/eagleday/356electrical.html
possible source - Merit
Malta
|
|
|
48.1) fuse holder, inline
|
2ea - single inline, bakelite fuse holders for radiator Lucas fan motors.
|
|
|

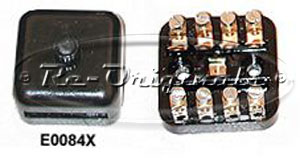

48.2) fuse box, small
Sicherungskasten
|
4 fuse box , bakelite, need info please
possible source - www.reoriginals.com
|
|
|

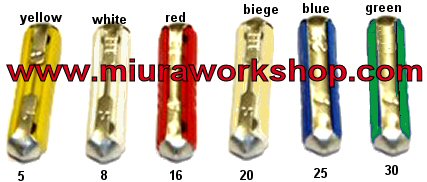

48.3 European Continental German Ceramic Bakelite fuses
|
5amp yellow, 8amp white, 16amp
red, 20amp beige, 25amp blue, 30amp green. These seem to be rated in
the owners manual at their peak blow rate. Example would be a 20amp
designated at 40amp or a 30 refered to as a 60.
|
|
|

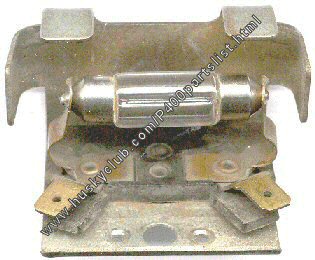

49) engine compartment lights
|
marked Giuntini, clear or yellow
zinc finish
application - Fiat 850 Spider
|
|
|

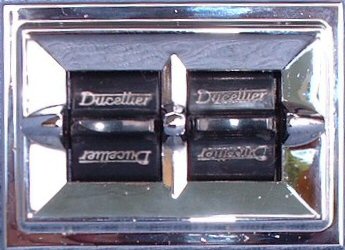

50) right and left power window

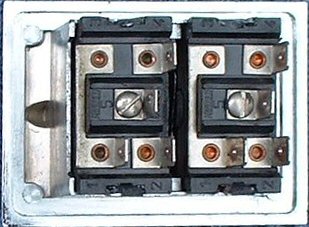

switch
|
Ducellier double switch unit
|
|
|
50.1) right/left window switch rocker type
|
need info please
|
|
|

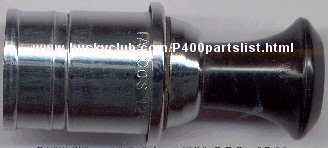

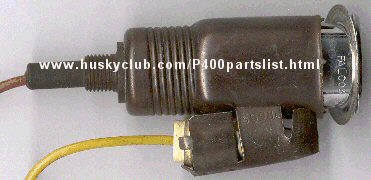

51) cigarette lighter
|
Falcos, Torino, 12v
|
|
|
52) headlight activator switch
|
Ducellier - Fiat Dino window
switch - marked 60358
|
|
|
52.1) headlite activator switch rocker type
|
need info please
|
|
|

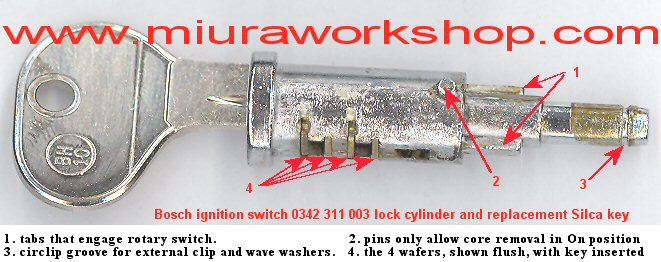

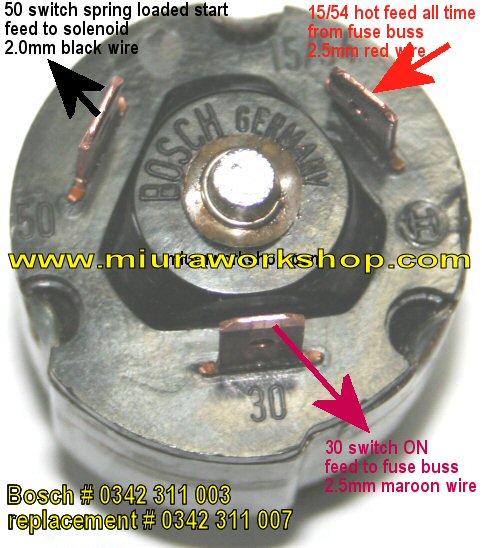

53) ignition key switch
|
Bosch #0 342 311 003
other applications- Alfa-Romea Giulia 1969-1975, Alfa-Romeo GTA Coupe 1.3 Junior 1968-1976
can substitute - 0 342 311 007
Schlüssel - German for key blank, Schlosser - German for
locksmith, Schlüsseldienst - key service.
Bosch Online
Auto-Bendig GmbH -> click ONLINE-SHOP -> enter Bosch number
|
|
|
54) alternator
|
Bosch # 0 120 400 547,
K1-14v-55a20, |
|
|
55) starter
|
Bosch # 0 001 354 101 |
|
|

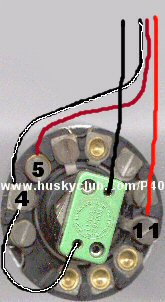

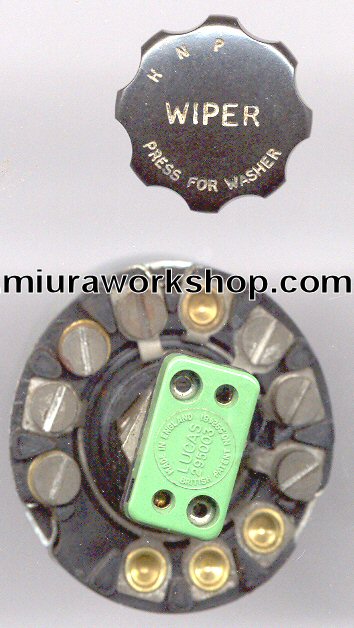

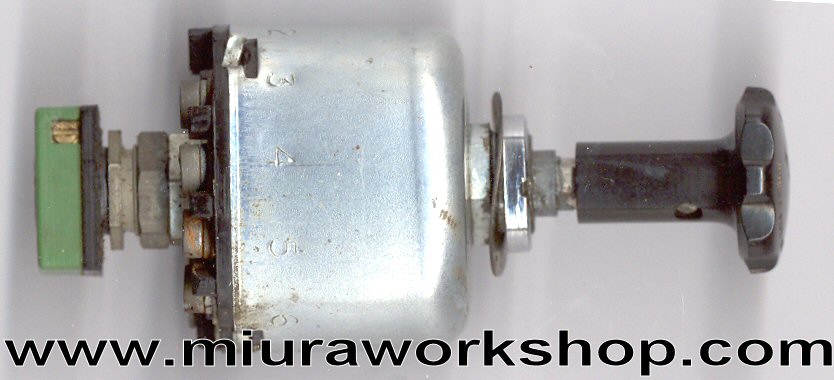

56) wiper/wash control switch
|
Lucas England 31714A 3 68 H N P, press for
wash
lower wash switch Lucas marked #295003
|
|
|
57) reverse gear/back up light
switch
|
CEAM -
TORINO - used on Lancia - 5mm travel, normally open, spring loaded
momentary on, jam nut - ceam #90011
|
|
|

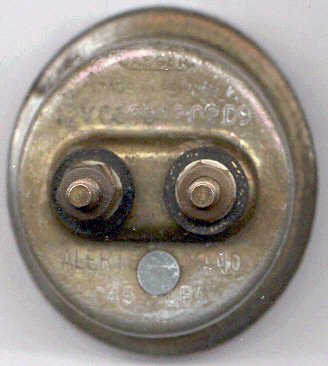

58) sender, oil press
and
switch, low oil press
|
Jaeger, 12V06981202D9
ALERTE MANO 045 IOBAR
|
|
|
59) oil temperature sender
|
Jaeger, 82405, H7, 02,
M16x1,5 , 12v
on the bakelite is - 13
|
 |
|

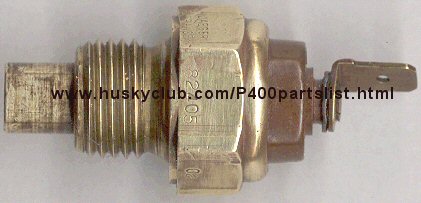

60) water temperature sender
|
Jaeger, 82405, H7, 02,
M16x1,5 , 12v
on the bakelite is - 14
|
|
|

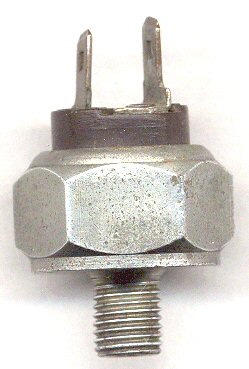

61) brake light press switch
|
Lucas, Type 2SH stamped into metal (underside, opposite bakelite) - #34619A, 12 67
bakelite marked - Lucas, England, 2SH , 37
|
|
|

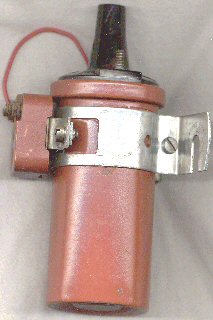

62) ignition coil
|
Magneti Marelli BZR-201-A
resistor marked - REF 2A, 8G- Ω 1.5
|
|
|
63) ac condensor fan
|
need info please
|
|
|
64) ac compressor
|
need info please
|
|
|

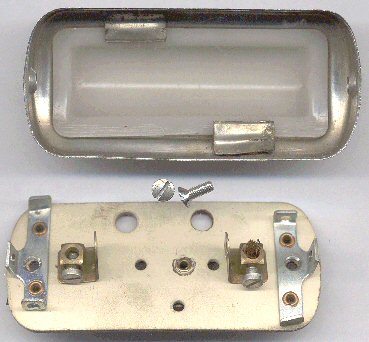

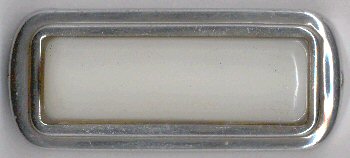

65) trunk light
|
no markings, 40 x 85mm, seen in
Ferrari interior use
|
|
|
65.1) trunk light switch
|
CEAM clip on switch for Miura
thru #275
CEAM door switch same as 31.5 used under left trunk hinge
|
|
|

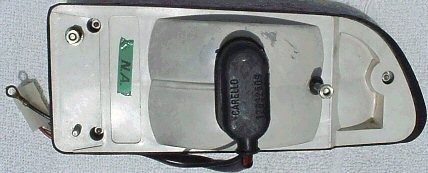

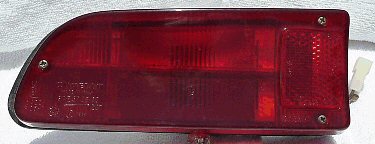

66) tail lights/turn
|
Carello, 850 Spider , Euro
red/amber, USA red/red
|
|
|
66.1) tail lights/turn SV series
|
Fiat Dino 2400 Coupe tail lites - 1969-1972 |
|
|
67) license plate lights
|
Hella
used on other German applications DKW, etc
black paint added to P400 series Miura #3 thru #275
grey gaskets oem
|
|
|

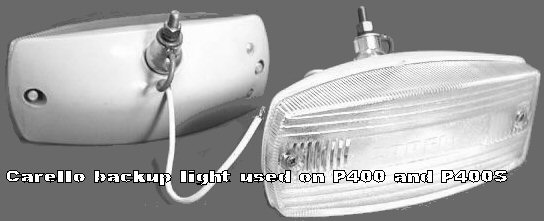

68) back up light
|
Carello , plastic comstruction -
Lamborghini, Ferrari, Lancia Fulvia Sport Zagato 1.3 S / 1.6 , others...
black paint added to grey plastic light housing P400 series Miura #3
thru #275
Not certain as to which Miura first fitted with back up light, appears
first 50 Miura or so did not have drilled shift tower for switch or bracket
for light. Light not used on SV.
|
|
|
P400
Electrical Components
SEIM,
white
