Description
Lamborghini
part number
OEM
details
notes and  dimensions
cosmetics

damper, steering rack
CS-03853
ARMSTRONG
Armstrong patents Co Ltd
York England
Patent No ............&Subsequent
Type GT/5/51033   Date 6/68
Dimensions-
eye to eye ext - 545mm
eye to eye comp - 325mm
mount  bush  - 10mm x 24mm
body OD lower - 32mm
cover OD top - 38mm
painted dark metallic grey blue

bolt, steering damper
BN-03547




bolt, steering damper
BN-03914




washer, steering damper bolt
RFN-01293




inner tie rod
CS-03839
ball joint assembly threaded and lock tab washer into rack - 16 x 1.5 LH

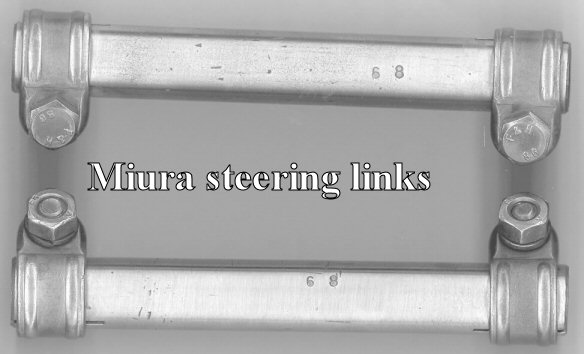

link, tie rod, tubular
CS-03839
left / right 16 x 1.5 threads in split tube ends that are locked with bolted band clamp

rod end, tie outer
CS-03839
threads 16 x 1.5 RH

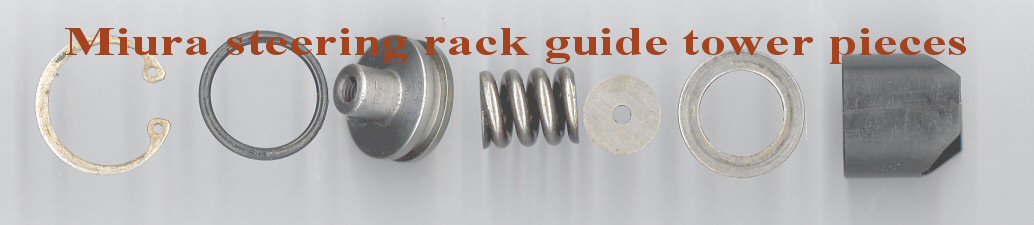

snap ring internal
SGN-03902
stamped I-106



cap, spring tower
CS-03891
steel - 26.95mm OD x



oring
GN-01041
see orings



oring
GN-03532
see orings



washer, special shim
RN-04186
steel - 18mm x 26.8mm x 1.15mm thick



spring, rack tower
CS-04074
steel - 16.75mm OD x 3.5mm wire x 4.5 coils x 20.3mm length



washer, special
RN-03892
steel, to protect plastic from spring - 4mm x 16.45mm x 0.50mm



guide, rack
CS-03890
plastic, Delrin like - 27.04 OD


































item
graphic

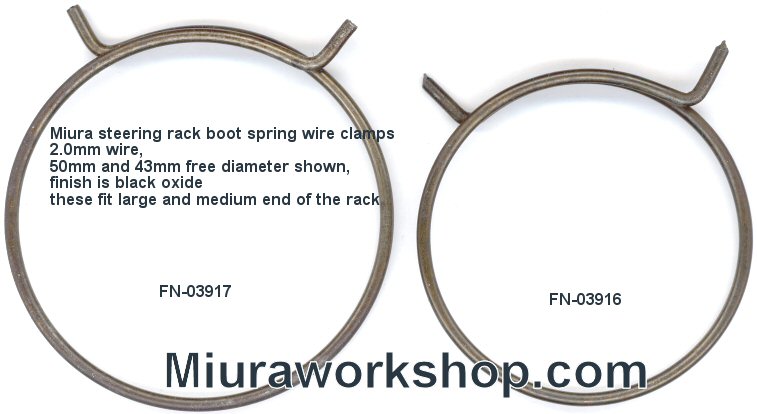

Miura steering rack boot spring wire clamps
