P400 Miura Brakes - Girling - use this info at your own risk - only my own personal guide

rotor info in progress
Description
 Lamborghini
part number
 type
P400
P400S
 OD
mm
A
 rotor
thick
B
 rotor
thick
min
 distance
overall
C
 bore
mm
D
 bolt
circle
E
 HAT
thick
F
 8 bolt
hole
dia
 Weight
 OEM
apps
 alt

 notes

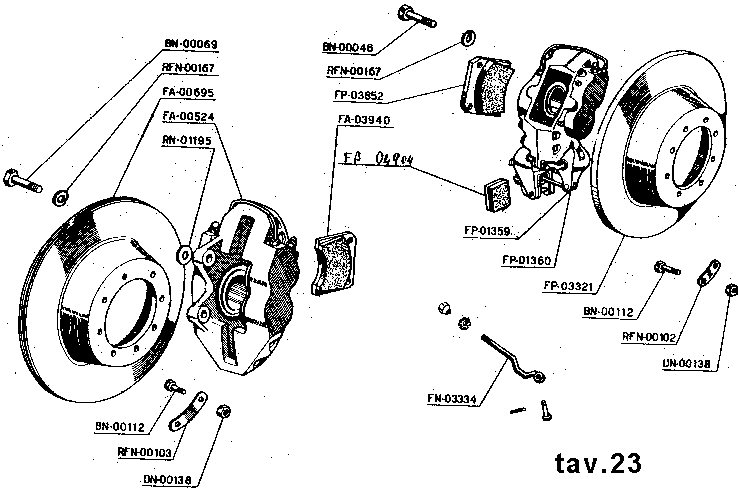

rotor, front
 FA-00695
003100695
 solid
 300
 15.0






350, 400, Miura, Islero
 add spacer to caliper,
convert to vented
rotor, rear
 FP-03321
003203321
 solid
 305
 9.5
57
 92
 110
 5.9
 8.45
 4580 gms
10.08 lbs
 Miura


Description
 Lamborghini
part number
 type
P400S
P400SV
 OD
mm
A
 rotor
thick
B
 rotor
thick
min
 distance
overall
C
 bore
mm
D
 bolt
circle
E
 HAT
thick
F
 8 bolt
hole
dia
 weight
 OEM
apps
 alt

 Notes
rotor, front
 FA-06387
003106387
 vented
 300
 32mm






Miura late model S , SV
 Espada?
rotor, rear
 FP-06402
003206402
 vented
 306
 22mm

92
 110
8.45




Replacement Girling SS caliper pistons for calipers from - http://www.fortunecity.com/silverstone/tread/1046/id23.htm
early Miuras 66-70 - approx cost listed each
64320163     19-1150     2.373"     style A     GB48668  Lamborghini Miura front large, 2 per car -  $26.60
64325111     19-1149     1.685"     style A      Lamborghini Miura early front small, 4 per car -  $24.75
64325436     19-1207     1.685"     style A      Lamborghini Miura early rear large, 2 per car -  $26.00
64325863     19-1223     1.188"     style A     Lamborghini Miura early rear small, 4 per car  -  $22.00
Girling Caliper Kits - early solid rotors, not later vented, example shown -
Miura early front - SP2577 - one kit does both front calipers - approx cost - $50
Miura early rear - SP2524 - one kit does both rear calipers - approx cost $40
Girling Brake pads
Description
 Lamborghini
part number
 Girling
part number
 Mintex
part number
 EBC
part number
 picture, click for
larger view
 approx
cost
other applications or notes

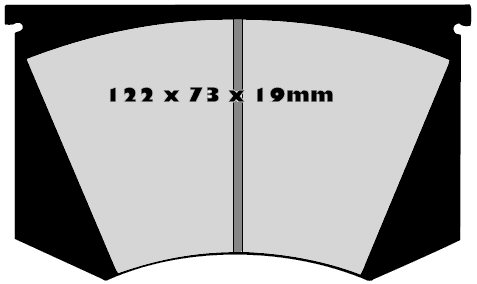

front brake pad
 FA03940
FA06765
003106765
 64325839NT
GDB 503 NT
 DB503
 DP2223
DP3223C
 $70 set of 4 pads
PASTIGLIA FR.2426 ANT.
Espada, Jarama

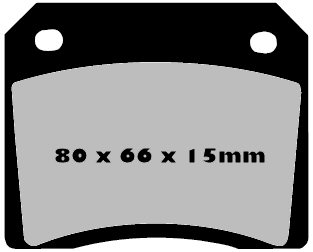

rear brake pad
 FP03852
FP06764
003206764
 64325738NT
GDB 521 NT
 DB521
 DP2101
DP3101C
 $70 set of 4 pads
PASTIGLIA F.2426 POST.
Espada, Jarama

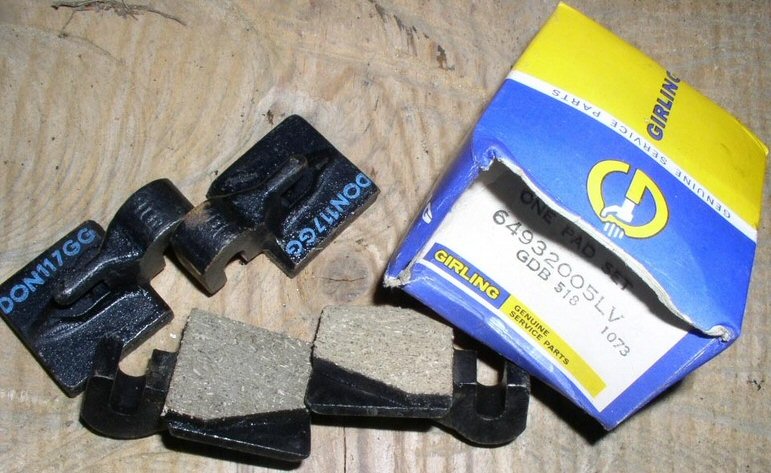

rear  handbrake pad - non vented
 ?
 64932005LV
GDB518 LV

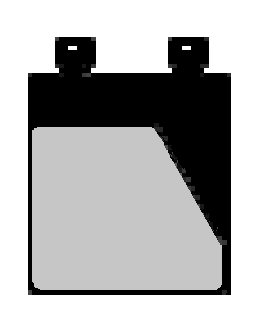

rear handbrake pad - vented rotor
 FP04904
 64932385LV

 MGB563AF

$20 set of 4
ASTON MARTIN DB6/DBS 66-73
ASTN MRTN V8 SPORTS 72 -77
JNSN INTERCEPTOR MK2/MK3  6.3 + 7.2  72 -76 JENSEN INTERCEPTOR S4 87-91 LAMBO ESPADA ISLERO JARAMA MIURA 70+  MASERATI BORA 68-82
GHIBLI 2.0 & 2.8 68+ INDY 72 -75 KHAMSIN , MERAK 73 TO 83 MEXICO 68 TO 72 MISTRALE 68 ON QUATTROPORTE 4.9 68 ON








Girling pdf file page 154
Girling pdf file page 155
Lamborghini brake caliper pistons
Girling
part number
 usa#
 dia
D
 length
approx
L
 style
 applications
 number
required
per disc
 price 2000
GB48668
64320163		 19-1150 2.373" 1.300"
 A
 Lamborghini Miura front large, GB48668 AM, Ferrari, I.S.O., Lamborghini front, Maserati, etc. 1
 $26.60
64325111 19-1149 1.685" 1.300"
 A
 Lamborghini Miura front small, 1.3" high Cobra, Ferrari 365GTB, GTC, Jensen Interceptor,  MK III, Lamborghini front, Maserati All Models 1965> 2
 $24.75
64325436
19-1207 1.685" 1.132"
 A
 Lamborghini Miura rear large, Aston Martin DB5, DB6, DBS V8 1963-76, Cobra, Damler SP250, DeTomaso Deauville Long Champ 1972>,  Jaguar 420 1967, XKE 4.2 9/68-71, XKE III V1 2 1971-74, XJS, XJ12 1969-77,  Maserati (all models), Lamborghini early Islero, 350, 400, 400 2+2
1
 $26.00
64325863 19-1223 1.188" 1.132"
 A
 Lamborghini Miura rear small, Aston Martin DB5, DB6, DBS, DBS V8 1963-76, Cobra, DeTomaso Deaulville, Long Champ 1972>, Jensen Interceptor MK 1111973-76, Maserati (all models), Lamborghini early Islero, 350, 400, 400 2+2 2
 $22.00
64325434 19-1225 1.500"
A
 Lamborghini rear Espada, Islero rear large, Alfa Guilia 101 1600 1963-68, Ferrari 365 GTB, GTC 1968 on Jaguar XKE 9/68-71, Volvo P1 800 (All), Volvo 122,
1
 $24.50
64326017
1.060"
A
 Lamborghini rear Espada, Islero rear small, Saab 1971-84, etc ,
2
 $22.00
email me with optional supplier data please
this data may not be correct, please provide feeback
link to fittings and tubing - http://www.fedhillusa.com
VLG - Question For Miura owners:What brake pads are you using and what have you experimented with(that of course, assumes that there is an option)? I am doing some brake work to the car and it would be a good time to replace the brake pads. Thanks. Alberto

A. Your car came with Girling brake pads front and rear.These pads are soft organic material. Later the SV came with Girling semi- metallic pads working on thick ventilated disc. I would not recommend using the later pad on a solid disc rotor as the pad eats up the rotor as it wears down. These solid discs are very hard to come by now The Miura will be easier to stop with soft pads under normal operating conditions. Ferodo is another choice. Jeff

A. I beleive the Miura uses the same front brake pads as the 350gt/400gt/Jarama. I like to use the Mintex pads on my 400gt. They are semimetalic and they work great! Jacques
VLG - Question - I am having my brake calipers rebuilt and have been looking into brake fluid (funny how you start studying minutae when you do something like this). Everyone without exception has told me NOT to use synthetics so I won't. Castrol LM has been recommeded, but I have read some very good things about ATE Typ 200 (I think it is a German product, comes in metal cans). It has higher wet and dry boiling points than the Castrol, is not a synthetic (contains only dead carbon based life forms), is DOT 3/4 compatible and has very low moisture absorption properties. Looks extremely good on paper. Anyone use this stuff on their Lamborghini's? How about Castrol LM? What are people using for brake fluid? Last thing I want to do is go through caliper rebuilds and use something that is going to screw up my seals or hoses. Thanks  Alberto A.
07/2005 - VLG - I'm not related to this company in any way...
Many here are convinced by their stuff, just have a look on it: http://www.ebcbrakes.com
In their catalogue they have pads for almost all Lambos: http://www.ebcbrakes.com/Assets/2005ebcintcat.pdf
See Page 104. Raymond
from a friend in Europe 10/22/05 maintaining a P400 -
These are parts that I bought from Powertrack.
Front caliper kit                      £35.00 - to service both sides
Rear caliper kit                       £24.50 - to service both sides
Front caliper piston, large        £38.46 - stainless steel. 1 required prer caliper
Front caliper piston, small        £28.21 - stainless steel. 2 required per caliper
Rear caliper piston, large         £18.50 -  1 required per caliper
Rear caliper piston, small        £28.21 - stainless steel. 2 required per caliper
Caliper bleed nipples              £2.00 each - 1 per caliper
Front pads                             £59.50 - set of 4
Rear pads                              £18.00 - set of 4
Front hose                             £15.50 each
Rear hose                              £21.50 each
Servo/Booster rebuild kit kit     £39.00 each - 2 per car
Paul H.Hunt    POWERTRACK LTD
i found PowerTrack Ltd at - http://www.powertrackbrakes.co.uk/
upgraded vintage Lamborghini brakes - http://www.movit.de/htm/jarama.htm
11/04/05 - PI spoke with the folks at Porterfield Brakes. Some of you recommended their R4-S compound brake pads. A couple of observations:
They said that the brake pads for the Miura are the same as for the Shelby Cobra (useful reference, I guess). Also the same for the Jarama and the Islero. (You listening Craig?)  They have the Miura pads in stock (no need to send them used backing plates for them to make for you, as someone recommended).
They indicated that their R4-S pads have the same rotor wear as the Fedoro pads or OEM pads for that matter. They also stated that if one is concerned about rotor wear, to Cryogenically treat the rotors. Questions: Does anyone have experience with Cryogenically treating rotors? Can one treat already used rotors and would that make sense?  Does anyone have experience with rotor wear with these pads/compound? By the way, the reason for the concern over rotor wear is that the solid rotors used on my car are apparently no longer made and very hard to find. Does anyone have a replacement source? Thanks. Alberto
Porterfield pads are simply great. I'm very happy with them. Excellent modulation, no fade at all. I switched 6 months ago to the R4 (track) compound, and was using the R4s prior to that and had 25km on those pads. So far no wear issues, they seem to be rotor friendly so far, with varied usage....track, highway, city. If you go with the R4s you will have no wear issues. The R4 has a very slight squeal, while the R4s had none. The interesting thing is the R4 performs better than the R4s when cold, not what I expected. The R4s would have poor braking when cold and pull to one side until warmed by the first hard braking.   Which reminds me...anyone need pads for a countach? i've got a 2 sets of Rofren brake pads. $40    Dennis
Regarding the worn rotors - one other alternative is renewing them via plasma spraying. There is a place in San Diego I used when my flywheel was badly scored and in need of replacement. Instead of replacing the flywheel, I brought it to Flame Spray, Inc. located at 4674 Alvarado Canyon Road in San Diego (just off I-8). Their phone number is 619-283-2007. They were able to use their plasma spray equipment to deposit new metal on the flywheel. Then a machine shop restored it to original thickness. The whole thing cost less than $200.00 and I ended up with a better than new flywheel. They can deposit virtually any material on any metal surface. They can even deposit space-age ceramics, if you want. In the case of brake rotors, the process would be like for my flywheel - deposit new metal and re-machine to spec thickness. I would recommend you give them a call. Cheers, Jack
2007 , another source - good experience with http://www.girling.de , who makes new parts for Girling brakes. His home page is in German, but he speak and understand English.

http://www.huskyclub.com/P400partslist.html
