| Description |
Lamborghini part number |
OEM manufacture part number |
OEM paint/finish |
Notes |
|
| straps, spare tire hold
down |
BS-04257 |
Fiat 850 Spider hold down
strap, collapsed convert top strap - 30mm wide, 470mm rubber eye to eye , 3 groove rubber, 3.5mm thick, pull tab at one end. Fiat bracket, sometimes sold seperate - modified (cut down) for Miura use. |
Fiat strap #4131743 Fiat #4131745 |
||

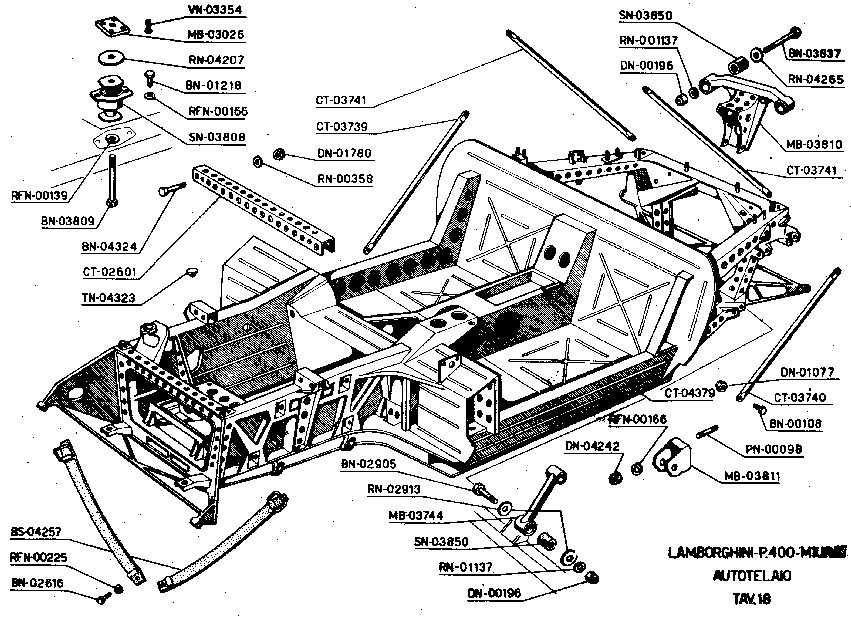

| brace, front upper |
CT-02601 |
steel weldment |
flat black |
||
| chassis, complete
structure |
CT-04379 |
steel weldment | flat black |
||
| brace, upper rear chassis |
CT-03741 |
steel tubing |
|||
| brace, lower rear right |
CT-03739 |
steel tubing |
|||
| brace lower rear left |
CT-03740 |
steel tubing |
|||
| brace, rear motor mount |
MB-03810 |
steel weldment |
flat black |
||
| bracket, front motor brace |
MB-03811 |
steel weldment |
|||
| brace, front motor |
MB-03744 |
steel tubing weldment |
|||
| bolt, rear brace - 8ea |
BN00108 8101031 |
10 x 1.5 x 25mm, marked 3F- 8G, 17mm x 7mm tall head, Uni 5739 12 x 1.5 x 37mm, marked - 4 F-10K, 22mm x 7mm tall head, DIN unknown |
black |
||
| nut, rear brace - 8ea |
DN01077 8201008 |
10 x 1.5, nylock, DIN985 12 x 1.5, nylock, DIN 985 class 10 |
Czinc |
yellow nylon | |
| floor covering, vinyl
w/insulation, driver side |
black vinyl |
glued | |
||
| floor covering, vinyl
w/insulation, passenger side |
black vinyl | glued |
|||
