Evolution Vintage Öhlins
2011 Öhlins Shock Service -
83 Husqvarna ITC set 250CR
rebuild - 195
revalve for 220 lb - 20
new spring set 220 lb- 160
new grey sleeves and circlips - 20
Husqvarna 390 WR rebuilt shock pair with spring choices
Your shocks are rebuilt and you have the original springs to put
back on them. Before you sent them in you realized you were
preloaded to the max and hope was that revalving will help the rear
suspension. Your weight is 225 as an adult, not particularly
heavy, but not as light as a 160 lb 20 something that probably owned
the bike when new.
The fact is revalving will help the shock action, but correct springs
are the real answer to you achieving the correct ride height and being
able to compete on the bike as intended. Fast motocross or tight
woods handling requires correct ride height.
Springs and spring design cost money. There is no getting around this.
Using the springs you have is always an inexpensive choice. It would be
best to skip a couple pizzas and beers. Save a couple bucks toward
springs set.
It is possible that purchasing a single set of progressive springs
could fit your needs and be a low cost method of achieving a great
ride. $120
It might be best to go with upgraded dual spring set, cost a little more, but might be best for motocross - $170-220
It might be even better to have the latest triple spring set to handle
modern tracks like a pro, cost slightly more - $220-250
1979 Husqvarana 250WR
Rebuilt shock set - 195
new black powder coated long springs with cam adjust preload - 130
new S/S extreme performance hoses - 68
free paint (customer provided stripped bodies/reservoirs)
simple revalve - 20
now set for 230 lb rider at intermediate cross country level, able to reuse short spring set
Complete internal service - 195 ( including new seal heads, new orings,
new teflon bands, bore surfaces refinished, new clips, new scraper,
piston lapped, oring grooves refinished, Ohlins shock oil, nitrogen, etc.)
Add on prices to rebuild cost :
new hoses - 68
new gold caps - 35
new bumpers - 15
revalved - 20
stripped/painted - already stripped - 40
not shown but included - 2 alternate end eyes for lower mounts, 4 O-ring seals for upper mounts

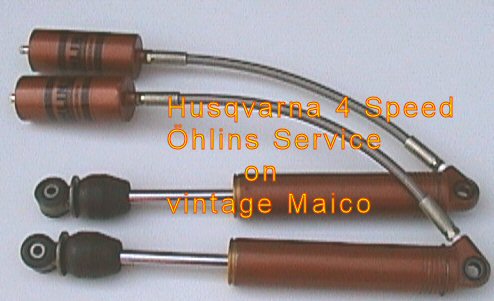

79 Maico remote pair with stock OEM spring set - 170 lb rider
79 Maico remote pair with upgrade 4 spring set - 220 lb rider
Cost for 4 spring set with new plastic dividers - 195 if an add to rebuild / - 220 if straight spring design and sale.
powder coated spring set with small detail description print showing on yellow coils in photo.
1980 Husqvarna 250 CR
cost of repair
Complete internal service - 195 ( including new seal heads, new orings,
new teflon bands, bore surfaces refinished, new clips, new scraper,
piston lapped, oring grooves refinished, Ohlins shock oil, nitrogen, etc.)
This pair already had grooved body caps, upper bearings fine, no corrosion damage.
Additional add prices to rebuild cost :
new hoses - 68
new bumpers - 15
stripped/painted - already stripped - 40
shipping - 20
1980 Husky with spring set for 220-240 lb rider
add 4 spring set with seperators during rebuild service - $195
shim stack up grade - $20 (in this case)
www.huskyclub.com/ohlins
